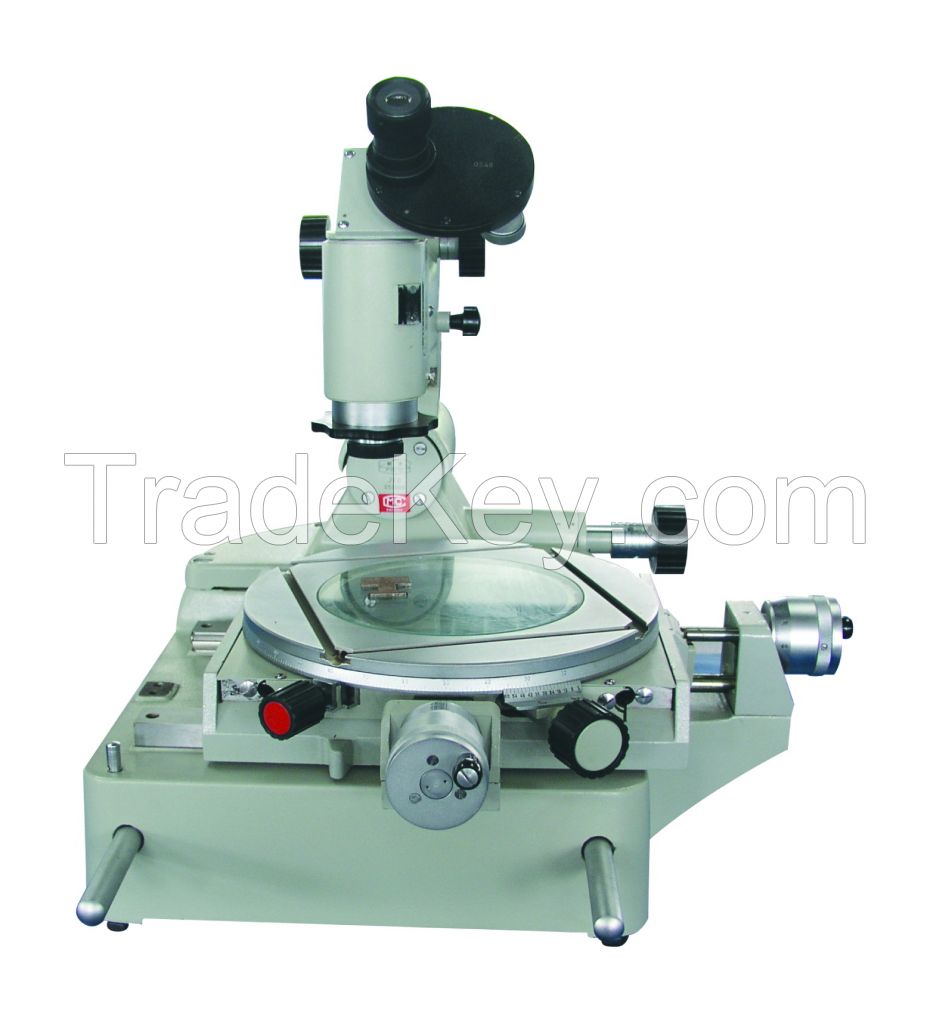

JX6 Large Toolmaker's Microscope

タイトルまたは説明

JX6
Large Toolmakers Microscope

USAGE
The large tool microscope is a versatile instrument. It is suitable for use in the workshop and the inspection department of research institutes and universities.

The chief uses of the instrument are as follows:
1. Inspect the shape of contour of work-pieces, such as templates, formed cutters,
Profile-milling cutters, punching dies and cams
2. Measure various parameters of a thread, including the pitch diameter, the external diameter, internal diameter, the pitch, the thread angle, the position of the thread angle with respect to the thread axis and the shape of the thread (the roundness, flatness and the straightness of the thread profile).
3. Measure of angles, including the thread angles of thread cutters, thread milling cutters and comb-type thread cutters, and contour angles of profile milling cutters and various templates.
4. Measure the diameter of bores and the width of all kinds of grooves with the optical feeler.
5. Measure center-to-center distance of bores, the width of the slit, the segment of A Line or the distance between two lines or symmetrical figures on the work-pieces with the double-image eyepiece.
6. Measure the radius ( R**-R**0) with the R-template eyepiece easily and precisely.

SPECIFICATIONS
Longitudinal travel 0 - **0mm
Transversal travel 0 - *0mm
Travel of the micrometer drum 0 - *5mm
Lateral inclination range of the microscope column ± *2°
Angular scale range of the goniometer eyepiece 0 ***0°
Angular graduation of the goniometer eyepiece 1'
Angular scale range of the thread template eyepiece ± 7°
Maximum allowable length of the work-piece to be placed on the center cradle
For work-piece Φ *9 **5mm
For workpieceΦ *5 **5mm
Maximum allowable diameter of the work-piece to be placed on the V-support **0mm
Measuring Error
When the goniometer eyepiece is used
For flat work-pieces:
Longitudinally
Transversally
For smooth cylindrical bodies
For thread pitch
Pitch diameter
Angle measurement
Note:
H - The height of the workpiece to be measured (Unit: Mm)
L -The length to be measured (Unit: Mm)
-The thread angle( Unit: Degree)
T -The sides length (or faces) that subtend the angle to be measured (Unit: Mm)

Dimension ( length * width*height): **0***0***0mm
Weight: *0kgs
4. MAIN ACCESSORIES
Goniometer eyepiece
Thread template eyepiece
Double-image eyepiece
R-template eyepiece
Objective 1X, 3X, 5X
Optical feeler
Reflecting illumination lamp
Gauge block and support for the gauge block
V-support
Center cradles and internal and external centers
Contact blade equipment
