离岸价格
Get Latest Price( Negotiable )
|1 Set Minimum Order
国:
Algeria
モデル番号:
JY-GWC-2500
离岸价格:
( Negotiable ) Get Latest Price
ロケーション:
-
最低注文量の価格:
-
最低注文量:
1 Set
パッケージの詳細:
automatic steel wire mesh welding machine , the main welding machine is packed by plastic , the spar
納期:
450-90 days after receive your deposit
供給能力:
10 Set per Month
支払いタイプ:
L/C, T/T
製品グループ :
Algeria
連絡先担当者 Mr. Brahim
Economical Zone, Ghardaia, Other
| Packaging Details: | automatic steel wire mesh welding machine , the main welding machine is packed by plastic , the spare parts is packed by wooden box. |
|---|---|
| Delivery Detail: | 450-90 days after receive your deposit |
automatic steel wire mesh welding machine
The main parameter
|
Wire diameter |
4.0-8.0mm |
Line wire form |
coil |
|
Weft wire distance |
50-200mm |
Weft wire form |
coil |
|
Line wire distance |
50-300mm |
Rated voltage |
380V |
|
Welding net width |
1600mm |
Rated power |
125KVA×8 |
|
Welding speed |
80times/min |
Overall dimension |
3100*40000*3000mm |
|
Welding No. |
32 |
Length wire net |
6000mm |
Machine performance ¶meter
1. The machine adopts synchronous control technique, both welding times and seperate welding are controlled by digital PLC system with touch screen, so that the operation is much more intelliget, reasonable and has a compression, sub-welding characteristics.
2. The aircraft welding power is from servo motor, welding speed is much faster and more stable.
3. welding pressure is provided by Nitrogen gas spring, which is easy to adjust quickly, and the pressure is more evenly.
4. Line wire and crss wire are from coils. CNC sets mesh length, automatic cutting, dropping, arresting and output, which maximized saves labor and greatly increased production.
machine application:mine timbering wire mesh, construction mesh, reinforced mesh.

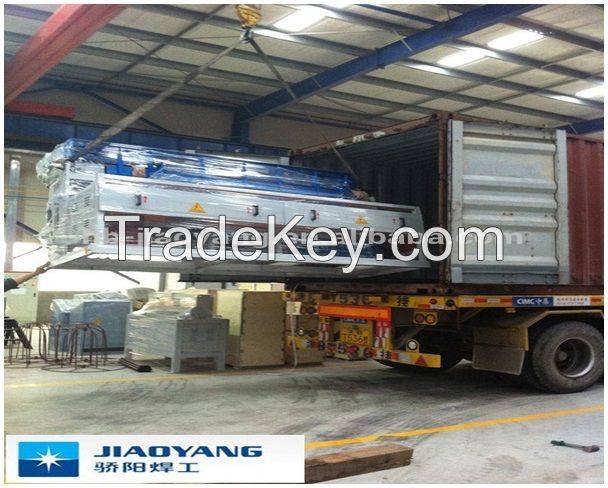

automatic steel wire mesh machine
1. the main automatic steel wire mesh machine is packed by wooden box
2. the spare parts is packed by wooden box.
