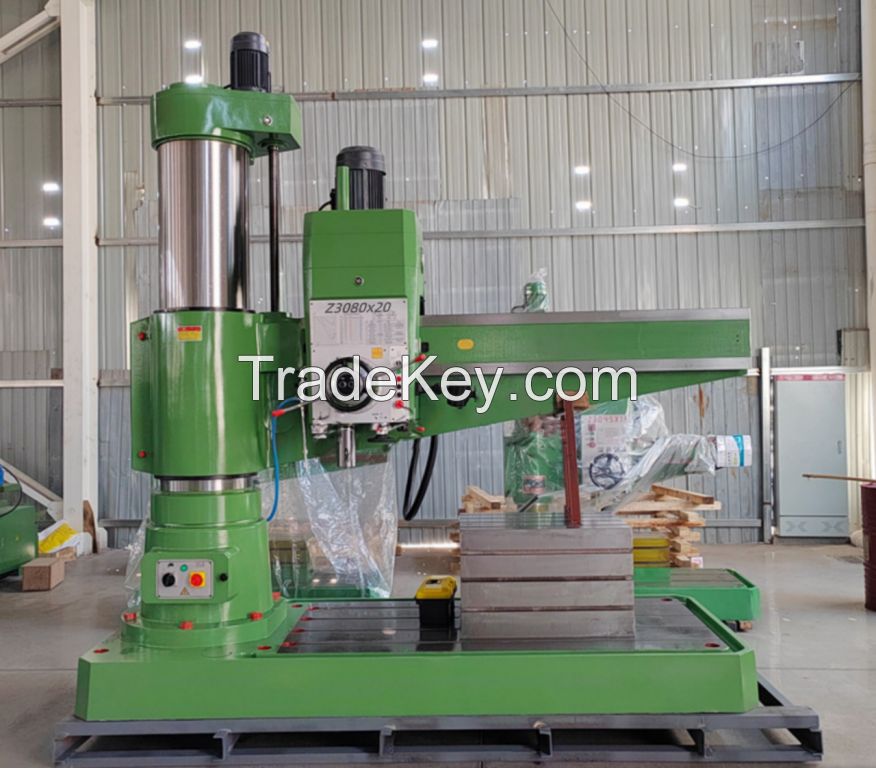

Z3080*25 Full Hydraulic Radial Drilling Machine 80mm Hole High Efficiency

タイトルまたは説明

Specs of radial drilling machine Z***0**5

Items		Specs	Unit	Remark
Max. drilling diameter		*0	mm
Distance between spindle axis and column surface	Max	***0	mm
	Min	500	mm
Horizontal moving distance of spindle box		**00	mm
Distance from spindle nose to table surface	Max	*0*0	mm
	Min	*50	mm
Radial lifting distance		*0*0	mm
Radial lifting speed		0.**7	m/s
Rotation angle of radial		±**0	°
Spindle tapper no.		MT6
Spindle speeds range		*6**1**0	r/min
Spindle speed step		*6	step
Spindle feeding range		0.***3.2	mm/r
Spindle feeding step		*6	Step
Spindle travel		450	mm
Drilling depth per dial revolution		**1	mm
Maximum allowable torque of the spindle		***8	N.M
Maximum feed resistance allowed by the spindle		3**0	N
Main motor power		7.5	KW
lifting motor power of radial		3	KW
Hydraulic clamping motor power		0.*5	KW
Cooling pump motor power		0.**5	KW
Overall dimensions(L*W*H)		***0x***0x***0	mm
Weight		****0	Kg

Product features of rocker drill:
 The feeding safety mechanism is safe and reliable, and the clamping of each part is convenient and reliable
 The speed change operating mechanism is on the spindle box for easy operation and speed change
 The casting adopts better batching process and pouring equipment to ensure the product quality of machine tool basic parts
 The main key parts are processed by imported machining center with high precision and efficiency, which ensures the stable and reliable quality of the machine tool
 The parts of the spindle group are made of better steel and better heat treatment equipment to ensure high strength and wear resistance of the machine tool
 The main gears are ground to ensure high precision and low noise of the machine tool
 Small size, small floor area and complete functions. It can be widely used for drilling, expanding, reaming and tapping
 Standard accessories: taper handle socket, tool unloading wrench, lower tool iron, box worktable, anchor bolt
 Special accessories: quick change collet, tapping collet, oil gun


国:	China
モデル番号:	z3080*25
离岸价格:	18000 ~ 20000 / Unit （交渉可能） Get Latest Price
ロケーション:	China
最低注文量の価格:	18000 per Unit
最低注文量:	1 Unit
パッケージの詳細:	wooden box
納期:	20 days
供給能力:	1000 Unit per Year
支払いタイプ:	T/T
製品グループ :	-
