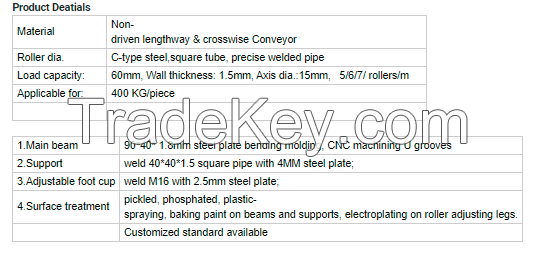

WZH6015-C6(2.5x1.5x3m)
Non-driven lengthway & crosswise Conveyor

Material: C-type steel,square tube, precise welded pipe
Roller dia.:60mm, Wall thickness: 1.5mm, Axis dia.:15mm,   5/6/7/ rollers/m
Load capacity: 400 KG/piece
Applicable for: lengthway & crosswiseconveying in material handling in many industries

Customized standard available

1. Main beam: 90*40* 1.8mm steel plate bending molding, CNC machining U grooves
2. Support: weld 40*40*1.5 square pipe with 4MM steel plate;
3. Adjustable foot cup: weld M16 with 2.5mm steel plate;
4. Surface treatment: pickling, phosphating, plastic-spraying, baking paint on beams and supports, electroplating on roller adjusting legs.
