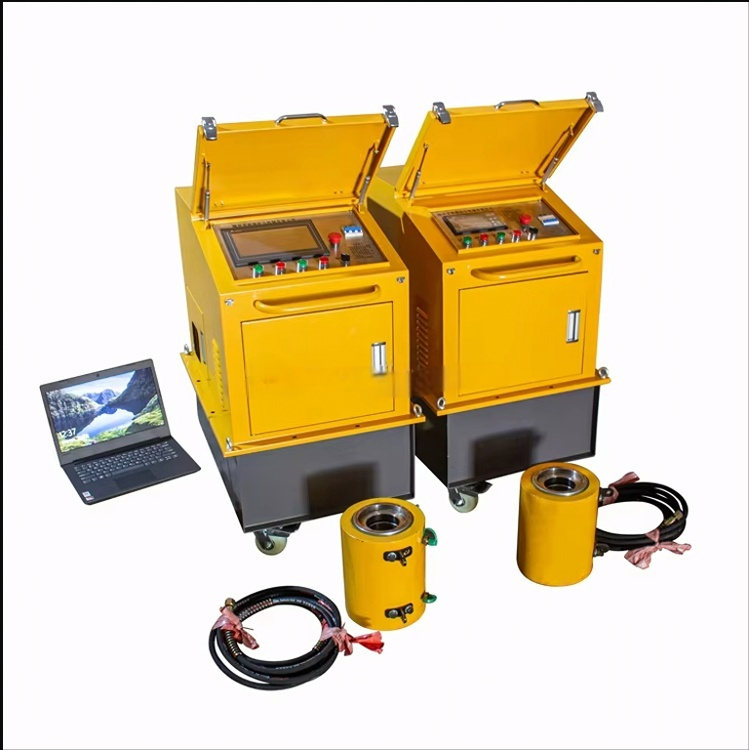

The XQV
Intelligence Tensioning Machinery Series boasts a very high
tensioning efficiency. The core raw materials used are all *5#
steel and *0Cr steel, whose chemical and physical properties are
extremely stable. The prestressed tensioning oil pump has an
excellent sealing performance and can be used in combination with
various pre-stressed jacks, ensuring that there will be no oil
leakage during the operation of the pre-stressed jacks and the oil
pump. The oil hoses we provide are also of the best quality, with a
pressure resistance of up to *0
MPa.
(I) Excellent
Performance
-
Strong
Power: Equipped with high-quality motors, it provides abundant
power, meeting diverse tensioning requirements. Moreover, it
has a high electrical energy conversion efficiency, saving
construction costs.
-
Precise
Hydraulics: The high-precision hydraulic system can accurately
control the pressure and adjust the flow rate. Coupled with
high-quality seals, it ensures the accurate application of
prestress and the stable operation of the system without
leakage.
(II)
Convenient and Easy to Use
-
Humanized
Design
-
Flexible
Installation:
(III)
Long-lasting Durability
-
High-quality Material
Selection
-
Low
Maintenance Cost
(III) Core
Parameters and Applications

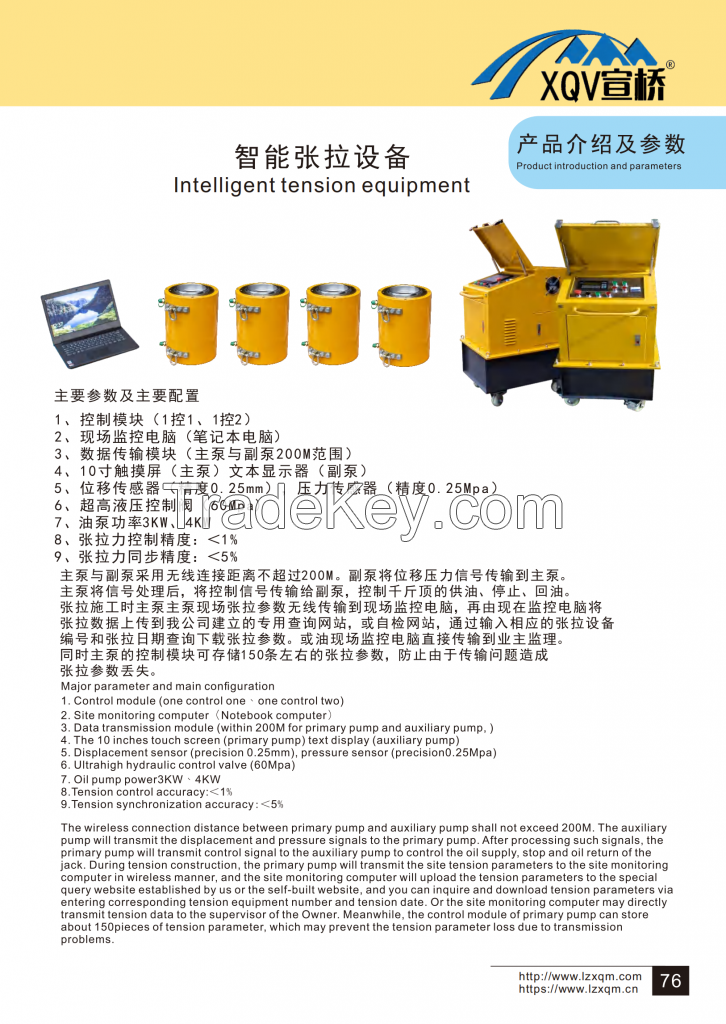

Majorparameter andmain configuration
1.Control module(one controloneã€one control two)
2. Site monitoring computer (Notebook computer)
3. Data transmission module (within 2ooM for primary pump and
auxiliary pump,)
4. The *0 inches touch screen (primary pump) text display
(auxiliary pump)
5. Displacement sensor(precision 0.*5mm), pressure
sensor(precision0.*5Mpa)
6. Ultrahigh hydraulic control valve (*0Mpa)
7. Oil pump power3Kw^4kw
8.Tension control accuracy:<1%
9.Tension synchronization accuracy: <5%
Majorparameter andmain
configuration
1.Control
module(one controloneã€one control two)
2. Site
monitoring computer (Notebook computer)
3. Data
transmission module (within 2ooM for primary pump and auxiliary
pump,)
4. The *0
inches touch screen (primary pump) text display (auxiliary
pump)
5.
Displacement sensor(precision 0.*5mm), pressure
sensor(precision0.*5Mpa)
6.
Ultrahigh hydraulic control valve (*0Mpa)
7. Oil
pump power3Kw^4kw
8.Tension
control accuracy:<1%
9.Tension
synchronization accuracy: <5%
The main pump
and the auxiliary pump are wirelessly connected, and the distance
should not exceed **0 meters. The auxiliary pump transmits the
displacement and pressure signals to the main
pump.
After the
main pump processes the signals, it transmits the control signals
to the auxiliary pump to control the oil supply, stop, and oil
return of the jack.
During the
tensioning construction, the on-site tensioning parameters of the
main pump are wirelessly transmitted to the on-site monitoring
computer. Then, the on-site monitoring computer uploads the
tensioning data to the dedicated query website or the
self-inspection website established by our company. The tensioning
parameters can be queried and downloaded by entering the
corresponding tensioning equipment number and tensioning date. Or
the data can be directly transmitted from the on-site monitoring
computer to the owner's supervisor.
Meanwhile,
the control module of the main pump can store approximately **0
sets of tensioning parameters to prevent the loss of tensioning
parameters due to transmission problems.
Service：
-
Professional Training: Provide
operation and maintenance guidance to ensure correct
usage.
-
Ultra-fast
Response: With a complete after-sales network, we can quickly
solve equipment failures.
-
Three-year
Warranty: Replace non-human-induced damaged components free of
charge.
| 国: |
China |
| モデル番号: |
Intelligence Tensioning Machinery for post tensinoning
|
| 离岸价格: |
7500 ~ 10000 / Piece ( Negotiable ) （交渉可能）
Get Latest Price
|
| ロケーション: |
China |
| 最低注文量の価格: |
7500 per Piece |
| 最低注文量: |
1 Piece |
| パッケージの詳細: |
wooden box |
| 納期: |
15-30 days after received payment |
| 供給能力: |
3000 Piece per Month |
| 支払いタイプ: |
PayPal, Western Union, L/C, T/T |
| 製品グループ : |
Intelligence Machinery
|
