product
Prev
Intelligent Tripod Access Control Intelligent Tripod Access Control Intelligent Tripod Access Control Intelligent Tripod Access Control Intelligent Tripod Access Control
Next

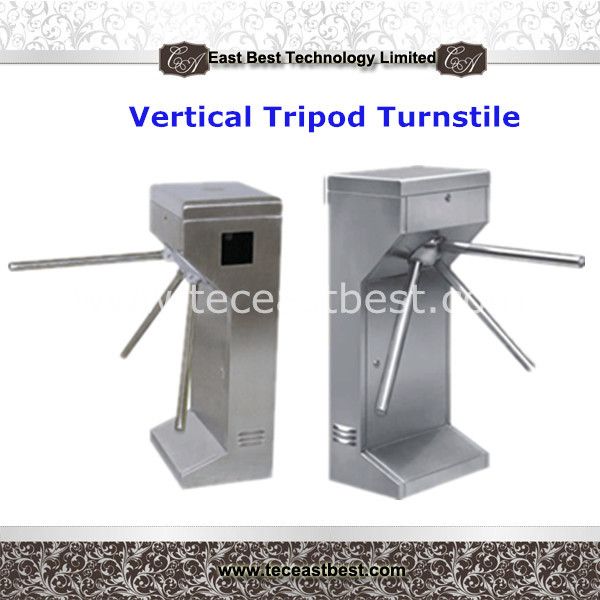

Intelligent Tripod Access Control

离岸价格

Get Latest Price

475 ~ 1075 / Set ( Negotiable )

|

1 Set Minimum Order

国:

China

モデル番号:

TEB-E219 / TEB-F219

离岸价格:

475 ~ 1075 / Set ( Negotiable ) Get Latest Price

ロケーション:

-

最低注文量の価格:

475 per Set

最低注文量:

1 Set

パッケージの詳細:

wooden box

納期:

1-5 work days

供給能力:

3000 Set per Month

支払いタイプ:

Money Gram, Western Union, T/T

製品グループ :

今すぐお問い合わせください

連絡先担当者 Ms. Annie

Young City-Park, Heping West Road, Longhua District,Shenzhen city, Guangdong Province, China., Shenzhen, Guangdong

今すぐお問い合わせください

製品仕様

  • Communication Connection:RS485 Communication Interface
  • Motor DC Brushless Motor:0.5NM/24V(Fully Automatic)
  • Power:AC220
  • card control:IC/ID/bar code control
  • usage:Security turnstile gate
  • operation:Fully Automatic or manual
  • Dimensions:1200*280*990mm
  • working mode:manual/card control
  • warranty:12 months
  • packing:wooden box
  • Optional:Counter and counter display
  • Material:304 / 201 # stainless steel
  • type:vertical tripod turnstile
  • Protection Grade:IP54
  • Passing Speed:40 Persons/min(IC Card)

タイトルまたは説明


Technical Parameters

No. Item Specification
1 Model TEB-219
2 Type Auto
3 Dimension: 1200*280*990mm
4 Power AC220C±10V, 50HZ
5 Operating Temperature -20°C-60°C
6 Relative Humidity 10Ma
10 Communication Connection RS485 Communication
11 Material SUS304 or Carbon Steel Powder Coating
12 Protection class IP54
13 Color SSB(US32D)- Stainless Steel Brushed / Powder Coating/Customized Color
14 Application Subway Station, Hover port, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on
15 Optional 1.Counter and counter display
2.Access controller or card reader
3. Key by-pass

Main Benefits
1. Bi-directional turnstile made especially for quick access control in areas with high traffic but limited space
2. An anti-panic system moves the arm from the horizontal to vertical position, thereby completely freeing the lane in the case of an emergency evacuation
3. Non-removable stainless steel arms to prevent vandalism

4. Durable, corrosion-resistant, heavy-duty mechanism for extended service life

Functions & Features:
(1) Running stable without noise and mechanical impact.
(2) The passers number can be set by management dept.
(3) Several working molds optional
(4) Bi-direction, or uni-direction. one forbidden, or one direction charged/ one for free pass, and all the working molds set in the main control board.
(5) Arm's up&down can be remote in long-distance when in fire happened.
(6) Indicator display guide passer in & out.
(7) The standard interface compatible with various readers and writer equipments.
(8)Computer intelligent control turnstiles.
(9)LED counter display passers total number .Manager can set numbers to 0.
(10) Card-reading memory cab be set by users.
(11) Self-check and alarm .


国: China
モデル番号: TEB-E219 / TEB-F219
离岸价格: 475 ~ 1075 / Set ( Negotiable ) Get Latest Price
ロケーション: -
最低注文量の価格: 475 per Set
最低注文量: 1 Set
パッケージの詳細: wooden box
納期: 1-5 work days
供給能力: 3000 Set per Month
支払いタイプ: Money Gram, Western Union, T/T
製品グループ : Turnstile
Intelligent Tripod Access Control
Intelligent Tripod Access Control
Intelligent Tripod Access Control
Intelligent Tripod Access Control
Intelligent Tripod Access Control
