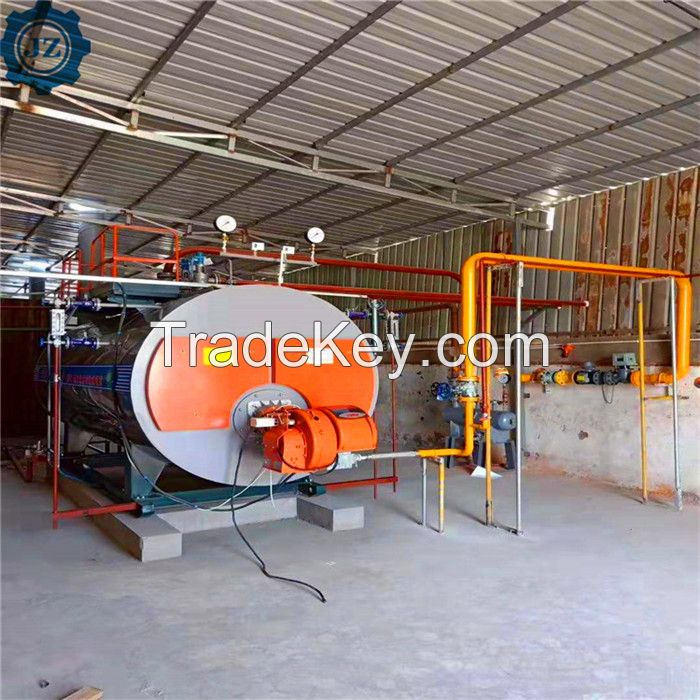

Fully Automatic 1-20ton Gas Oil Steam Boiler Price

FOB Price

Get Latest Price

12000 ~ 18000 / Piece

Minimum Order

Place of Origin:

Price for Minimum Order:

Minimum Order Quantity:

1 Piece

Packaging Detail:

The boiler main unit and the large auxiliary equipment are naked, and other precision instruments or

Delivery Time:

15 to 20 days

Supplying Ability:

100 Piece per Month

Payment Type:

T/T, L/C, Western Union

今すぐお問い合わせください

Henan Jinzhen Boiler Manufacturer Co., Ltd.

China

無料会員

連絡先担当者 Ms. Jinzhen

East Jinshui Road, Shanghai, Shanghai

今すぐお問い合わせください

Description

WNS series oil&gas steam boiler adopts horizontal three-pass wet-back structure,,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.
Rated steam capacity:0.5ton**0ton/h;
Fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;
Rated steam pressure:1.0Mpa(*0bar),1.*5Mpa(*3bar),1.6Mpa(*6bar),etc;
Steam Boiler Feature
1.Special Structure and High Efficiency: All system is well mounted on the base, its system is portable. The users no need to consider the pipeline installation, wire connection. After receiving the goods, just supply water, electricity, fuel. It is equipped with renowned brand burners (BALTUR, RIELLO, HOFAMAT, ECOFLAM), also finned tube type economizer can ensure boilers thermal efficiency up to *5%.
2.High Quality Control: In manufacturing processes, we has adopting steel strength test, automatic steel cutting plate rolling/ welding, **0% x-ray welding check, magnetic particle check c-scan ultrasonography Ultrasound check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.
3.Automatic Safe Operation: industrial steam boiler is equipped automatic burner ignition, automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible systems working states on screen.
4.Easy Maintenance: horizontal steam boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry-fire broken, reduce the range of steel cooling contraction and hotting expansion. Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently.
Steam Boiler Specification

model	WNS0.*1.-Y(Q)	WNS0.*1.-Y(Q)	WNS1.-Y(Q)	WNS1.1.-Y(Q)
Steam Capacity	**0 KG/H	**0 KG/H	***0 KG/H	***0 KG/H
Boiler Horsepower	*0 HP	*0 HP	*0 HP	**0 HP
Working Pressure	***0 BAR	***0 BAR	***3 BAR	***3 BAR
Steam Temperature	≤**4 â„ƒ	≤**4 â„ƒ	≤**4 â„ƒ	≤**4 â„ƒ
Fuel Type	Gas, Oil	Gas, Oil	Gas, Oil	Gas, Oil

Electronic Control System

1. Use Siemens and other international brands of PLC and other automation controllers as the control core
2. Adopt the peripheral components of major international brands to realize a high-quality fully automatic control system
3. Real-time collection of various parameters such as inlet and outlet temperature and pressure and centralized display in the control cabinet in real time
4. Through closed-loop control systems such as PID to ensure the stable operation of the boiler under various parameters set by the user
5. Monitor the working range of each group of data, remind or alarm for various abnormalities, which is convenient for users to use and maintain
6. The control module has powerful expansion capabilities. According to customer needs, it can easily realize multiple in-depth applications such as group control and remote control.
Executive Standard
1. Design, manufacture, assembly, experiment and acceptance of boilers in strict accordance with industry standards, including but not limited to the following standards: GB/T****8 Boiler Shell Boiler, TSG G***1 Boiler Safety Design Supervision Code, GB****3 Boiler Installation Engineering Construction and Acceptance Code
2. The main steel used in the boiler is *0 GB/T***7, which ensures the safety and reliability of the boiler.
3. Welding materials shall be selected according to NB/T****8. Full penetration welding with argon protection shall be performed on the boiler tube.
Our Main Product scope:
1.Fire tube series Horizontal oil/gas fired boilers (0.***0T/H, 0.***1MW)
2.Water tube series Horizontal Oil/gas fired boiler (*- *5T/H )
3.Vertical fire tube series Vertical Oil/gas fired boiler (0.**2 T/H, 0.***0.7MW )
4.Large drum chain grate new type water fire tube boilers (***5T/H, 0.***9MW)
5. Double drum chain grate series water tube biomass boilers (***5T/H, 1.***9MW)
6. Electric boiler boiler ( *****0 T/H)
7. Oil/Gas fired thermal oil boiler
8. Coal fired thermal oil boiler heater
