Description
***5ton Output Coal /Wood
/Biomass Fired Steam Boiler For Garment Plant
Model:Chain Grate Stoker Type
Boiler
Structure:Three Pass Single
Drum
Fuel:Coal, Biomass, Wood, Chip, Husk,
Sawdust, Jute, Shell, Waste Solid Fuel
etc.
Capacity: 1 - *0 ton/h
(1ton,2ton,4ton,6ton,8ton,*0ton,*5ton,*0ton)
Pressure:0.7/1.0/1.*5/1.6/2.5Mpa
(7Bar/*0Bar/*2.5Bar/*6Bar/*5Bar)
Temperature:**0/**4/**4/**4/**5
C
Application:Food and
Beverage,Textile,Plywood,Rice Mill,Chemical,Paper Mill,Rubber Plant
etc

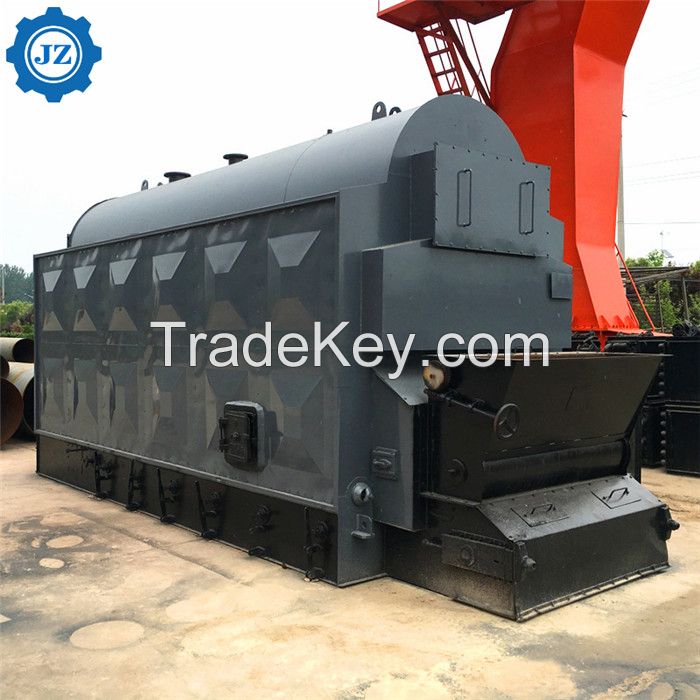

DZL series chain grate biomass steam boiler,
is a kind of horizontal three-pass water tube and fire tube shell
boiler, the left and right side water cooling wall of furnace is
radiation heating area, both side of flue and thread fire tube of
inner boiler drum is convection heating area. Front and back
furnace wall and both side of water cooling wall made up of
refractory bricks. Use light chain grate add fuels mechanically,
and equip with blower, draft fan for mechanical ventilation, also
equip with scraper slag extractor for discharging the ash
automatically.
This series boiler is single drum horizontal
type shell boiler, the combustion equipment is chain grate, has the
advantages of feed mechanically and strong adaptability of
different fuels.
DZL
series coal
fired steam boiler
is the single drum longitudinal type water and fire tube shell
water boiler, the burning equipment is the chain
grate.
1. The fire grate is compact and dense.
It is especially suitable for the combustion of biomass
particles.
2. Boiler internal heating area is
larger than the same specifications of coal-fired boilers, to make
up for the disadvantage of biomass fuel combustion
value.
3. The condition is stable, continuous
fuel combustion. By adjusting the secondary speed air volume,
control the speed of combustion ignition.
4.
The biomass steam boiler is
easy
to operate, user-friendly design, without complicated
procedures.
5.It takes the thread smoke tube to
enhance heat transfer, improve the heat transfer coefficient and
thermal efficiency.
Due to disturbance of smoke in the
tube, the smoke pipe is not easy to accumulate dust ,it can clean
by itself .
6.Fuel easily obtained, the ash can be
recycled.
Application
scope:
This steam
boiler is used
for producing desired steam for manufacturing process in the weave
factory, printing and dyeing, papermaking and other industry like:
food, rubber, plastic, chemical, pharmaceutical, etc, and for
heating room and bath in factories, departments, hotels, schools,
restaurants, services industries etc.
