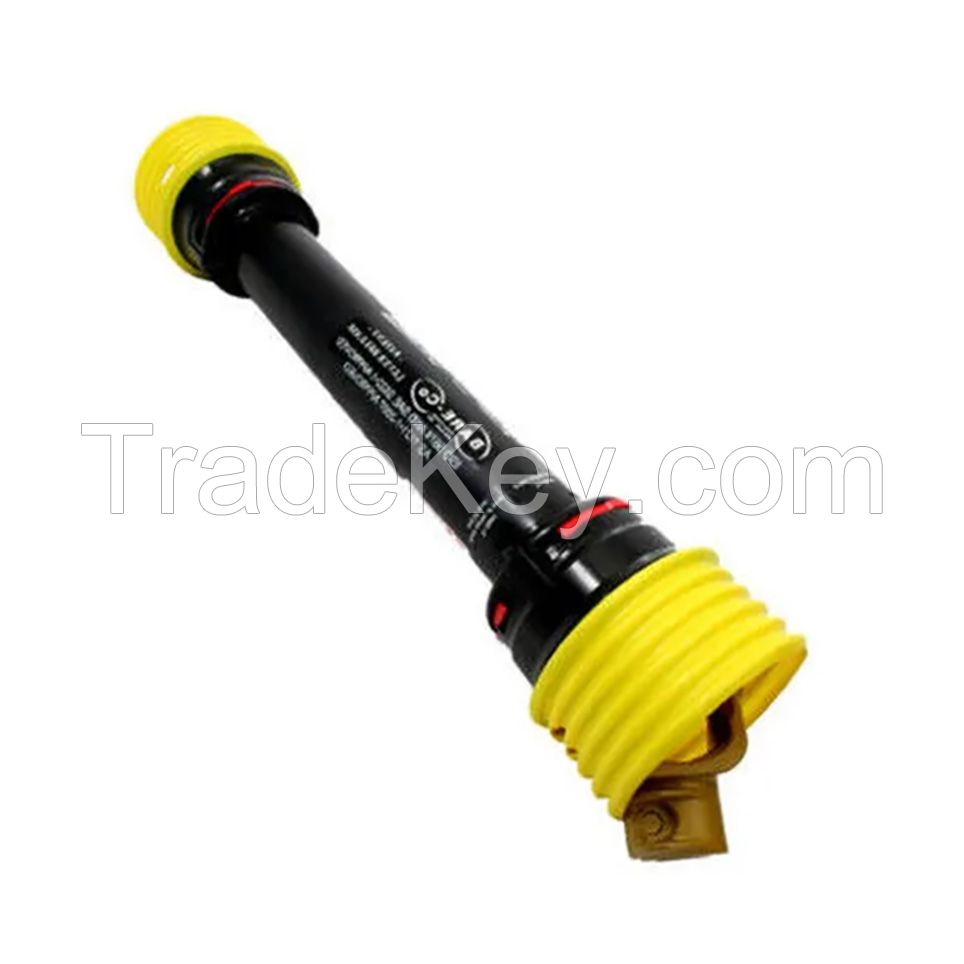

Description
A Four Series PTO (Power Take-Off) shaft is a form of power
transmission device made of metal that is used to transfer energy
from an engine or any other power source to equipment like a baler
or mower. The term "4 series" signifies the dimensions as well as
the specifications for the PTO shaft which are designed to handle a
specific amount of torque and power.
The PTO shaft of the 4 Series is splined in a standard size
and pattern that lets it be easily detached from the tractor. It
usually consists of a rotating shaft that has a splined ending that
connects to the tractor\'s PTO output shaft, and an attachment yoke
or another mechanism at the other end that connects with the
implement.
This PTO shaft was designed to support up or *0 horsepower
based on the particular type and design. It is essential to choose
the correct size and kind of PTO shaft to suit the equipment you
are using, as an unsuitable or oversized shaft can cause damage to
your equipment or even death or serious injury to the user.
#4 Series PTO Shaft Parts
The 4 Series PTO (Power Take-Off) shaft is typically made up
of a number of components, including:
1. PTO Shaft: The primary rotating shaft that transmits energy
from the tractor into the. The shaft is typically composed of
steel, and it has a splined end that is attached to the tractor\'s
PTO output shaft.
2. Yoke: Yoke: PTO shaft yoke or any other attachment
mechanism is utilized for connecting a PTO shaft and the. The yoke
might include a spline or another connector that is matched to the
shaft of the implement\'s input.
3. Safety Shield: A PTO shaft guard or safety shield is used
to protect the PTO shaft to protect pets and humans from being in
close contact with a rotating shaft. These PTO shaft security
shields are typically composed of plastic or metal and could be
hinged or sliding designed to allow easy accessibility to the PTO
shaft.
4. Bearing Bearing PTO shaft bearing is utilized to help
support the PTO shaft and decrease friction when it turns. The
bearing could be situated in the tractor itself or in the machine,
based on the particular design.
5. Locking Collar PTO shaft-locking collar or another device
is employed to lock the PTO shafts PTO shaft with the tractor\'s
PTO output shaft. The locking collar can be spring-loaded or
require a different tool for engaging and disengaging.
6. Universal Joint PTO universal joint for shafts or U-joint
can be used for power transfer between both the PTO shaft, and
implement. This PTO shaft U-joint can allow for slight misalignment
between two shafts and assists in reducing wear and
vibration.
7. Clutch: Several PTO shafts could have an automatic clutch
mechanism that permits operators to engage or disengage from the
PTO with no interruption to the tractor\'s motor. This PTO shaft
clutch could be either automatic or manual according to the
specific model.
# Benefits of the 4 Series PTO Shaft
There are a number of advantages to having the four Series PTO
(Power Take-Off) shaft:
(1) Versatility The Four Series shafts for PTO have been
designed to work with a wide variety of tractors and other
implements that makes them a flexible option for farmers and
agricultural experts. They are compatible in conjunction with
various equipment such as balers, mowers, and tillers.
(2) Efficiency 4. Efficiency: The 4 Series PTO shafts permit
the transfer of the power source from the tractor onto the
implement decreasing the requirement to use multiple sources of
power, and increasing the overall efficiency.
(3) Safety: The 4 Series PTO shafts are constructed with
security in mind. They come with shields and guards that assist to
reduce the risk of injuries and accidents. If used properly, PTO
shafts can be an efficient and safe method to provide power to
agricultural equipment.
(4) Durability PTO shafts of the 4 Series typically are made
of top-quality materials, like aluminum or steel that are able to
withstand the demands of rough and heavy-use terrain. They are
therefore a sturdy and long-lasting choice for farmers as well as
other professionals in agriculture.
(5) Cost-effective 4 Series PTO shafts are an efficient way to
run farm machines since they do away with the requirement for
additional motors or engines. This could help reduce costs for
equipment overall and improve profits for farmers as well as other
professionals in agriculture.
#4 Series PTO Shaft Common Applications
Four Series PTO (Power Take-Off) Shafts are employed in a
range of agricultural uses. The most popular applications
are:
Mowers 4 Series PTO shafts are commonly employed to run rotary
mowers flail mowers and other kinds of mowers to keep fields,
pastures, and various other areas.
Balers: The 4 Series PTO shafts power balers for hay and other
varieties of agricultural baling equipment. They can be utilized to
compact and wrap straw, hay, and various other crops.
Tillers: Four Series shafts for PTO are commonly utilized to
power tillers as well as various soil-preparation equipment that is
employed to cultivate the soil and prepare fields for
planting.
Spreaders: Four Series PTO shafts can be usually used to power
spreaders for manure as well as fertilizer spreaders and other
varieties of spreaders.
Harvesters PTO shafts of the 4 Series serve as power for
combine harvesters, as well as other kinds of agricultural
harvesting equipment. These can be used to harvest and process the
crops.
Irrigation pumps Four Series shafts may serve as power for
irrigation pumps, as well as other kinds of water management
equipment that can be used to transport water and irrigation
crops.
Wood chippers: PTO 4 Series shafts drive wood chippers as well
as other machinery for forestry, used to process wood and other
kinds of wood.
Overall four Series shafts for PTO are useful and versatile
parts of a variety of agricultural equipment. They help farmers and
other professionals in agriculture to be more efficient and
efficient in the field.
4 Series PTO Shaft for Post Hole Digger *-Serie PTO Shaft to
Rotary Tiller
4 Series PTO Shaft for Fertilizer Spreader *-Serie PTO Shaft
to Rotary Cutter
#Series 4 PTO Shaft Maintenance & Lubrication
The proper maintenance and lubrication of the Series 4 PTO
(Power Take-Off) shaft is vital for ensuring safe and efficient
operation. These are general rules to maintain and lubricate the
Series 4 PTO shaft:
Regularly inspect the PTO shaft prior to each use to look for
indications that wear, or damage such as bends, cracks, or
components that are not functioning. Replace any damaged or worn
parts prior to making use of the equipment.
Lubrication: Add top-quality oil or oil or grease on the PTO
shaft as well as all moving parts prior to each use. This will help
reduce wear and friction as well as prolong the life of the
component.
Cleaning of the PTO shaft and the other components on a
regular basis to eliminate dirt, dust, and other contaminants that
could cause damage or disrupt the proper operation.
Guarding: Make sure all shields and guards are installed and
working effectively to safeguard against the risk of accidental
contact with the PTO shaft that is rotating. PTO shaft.
Storage: Keep PTO shafts in a storage area. PTO shaft in an
air-tight, dry location whenever not in use and shield it from
sunlight, water, and other environmental conditions which can lead
to corrosion and rust.
Maintenance Schedule The manufacturer\'s recommendation for
the maintenance plan for the PTO shaft and the associated
equipment, includes lubrication, inspection, and repair of damaged
or worn components.
In the end, proper maintenance and lubrication of the Series 4
PTO Shaft can aid in preventing injuries and accidents, extend the
life of the machine as well as assure safe and efficient operation
on the job.
#Agricultural Gearboxes for 4 Series PTO Shafts
The agricultural gearbox is an essential component in
agricultural machinery because they assist in transferring energy
from the power-take-off (PTO) shaft to the machine\'s working
parts. Four Series PTO shafts fall into a category of PTO shafts
that are designed for heavy-duty and medium-duty agriculture
applications.
Here are a few common kinds of agricultural gearboxes that are
suitable for PTO shafts in the 4 Series:
1. The gearbox for a Rotary cutter The type of gearbox is
typically used in rotary mowers or rotary cutters that are designed
to cut through dense grass, brush, and smaller trees. The gearboxes
for rotary cutters usually have an extremely high torque rating in
order to meet the demands of cutting through thick
vegetation.
2. Gearboxes for the Rotary Tiller: Used in cultivators or
rotary tillers This type of gearbox is designed to transmit energy
to the tines that go into the dirt, breaking it down and mixing it
with. The gearboxes of rotary tillers are constructed to withstand
the force and the heavy loads that are generated by tilling
operations.
3. The gearbox of a Post Hole Digger gearbox is utilized to
drive post-hole diggers that are made to make holes that can be
used for planting fences, posts, or for other purposes. The gearbox
for the post-hole digger is required to handle high torque when the
auger digs in the ground and is confronted with diverse soil types
and obstructions.
4. The spreader of fertilizers utilizes this kind of gearbox
to spread fertilizer granular or liquid evenly over an area. The
spreader gearbox for fertilizers ensures constant spreading by
controlling the speed and the rotation that the mechanism
spreads.
5. Seeder gearbox This gearbox is utilized in seeders, also
known as seed drills, designed to seed seeds in rows, at precise
intervals, and in particular depths. The seeder gearbox is able to
ensure precise Seed placement by controlling speed, rotation, and
the mechanism.
When choosing the industrial PTO agricultural gearbox for the
4 Series PTO shaft It\'s important to think about aspects like the
equipment\'s specifications as well as the gearbox\'s capacity for
torque and the gear ratio. In addition, it is vital to maintain
proper lubrication and maintenance to extend the life of the
agricultural gearbox and keep it operating at its peak.
