Xh-Sct-T16 UL Split Core Current Transformer output 333mV diameter16mm

离岸价格

Get Latest Price

3 ~ 6 USD / Piece

1 Piece Minimum Order

国:

China

モデル番号:

离岸价格:

3 ~ 6 USD / Piece （交渉可能） Get Latest Price

ロケーション:

China

最低注文量の価格:

3 per Piece

最低注文量:

1 Piece

パッケージの詳細:

Cartons with Inner Plastic Bags

納期:

3-7days

供給能力:

20000 Piece per Week

支払いタイプ:

T/T

製品グループ :

split core CT/current transformer

今すぐお問い合わせください

Jiangyin Xinghuo Deyue Technology Co., Ltd

China

8888 信任点

1st 年

連絡先担当者 Mr. Jay

No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu

今すぐお問い合わせください

タイトルまたは説明

Basic Info.

Model NO.

XH-SCT-T16

Insulating Medium

Insulating Paper

Installation

Active Type

Magnetic Circuit Structure

Single Stage Type

Voltage Transformation Principle

Electromagnetic Type

Color

Black and White

Accuracy

Within 1%

Output

0.333V

Rated Current (RMS)

0-80A

Size

Diameter 10mm

Transport Package

Cartons

Specification

CE, UL, ROHS, ISO9001: 2008

Trademark

Jiangyin spark

Origin

China

HS Code

8504

Production Capacity

200, 000 PCS/Month

Product Description

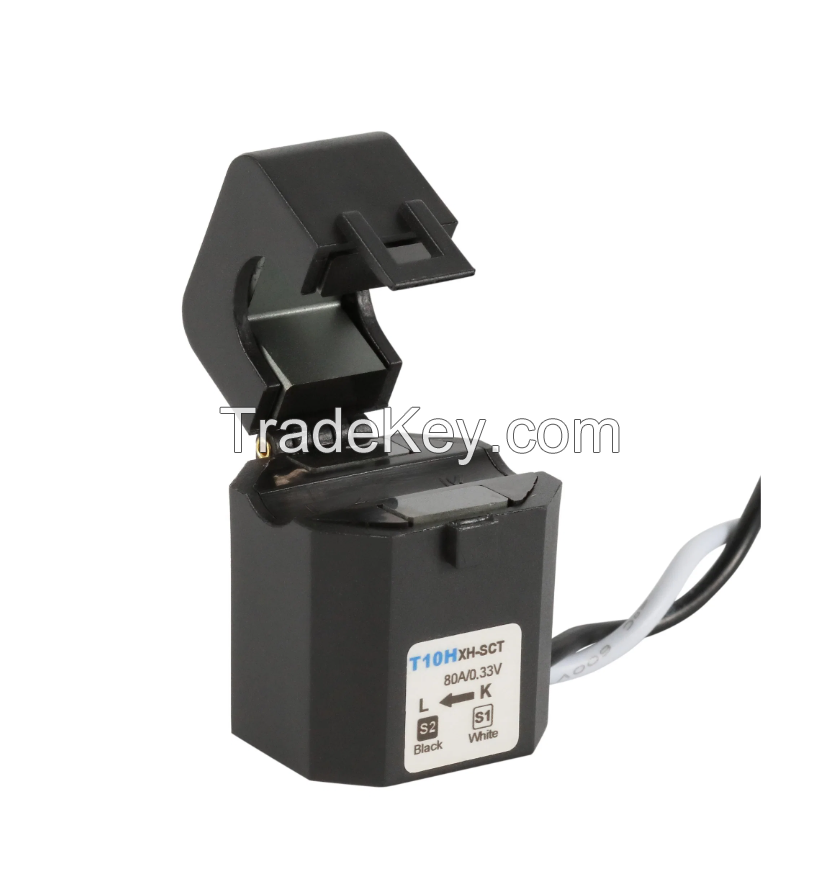

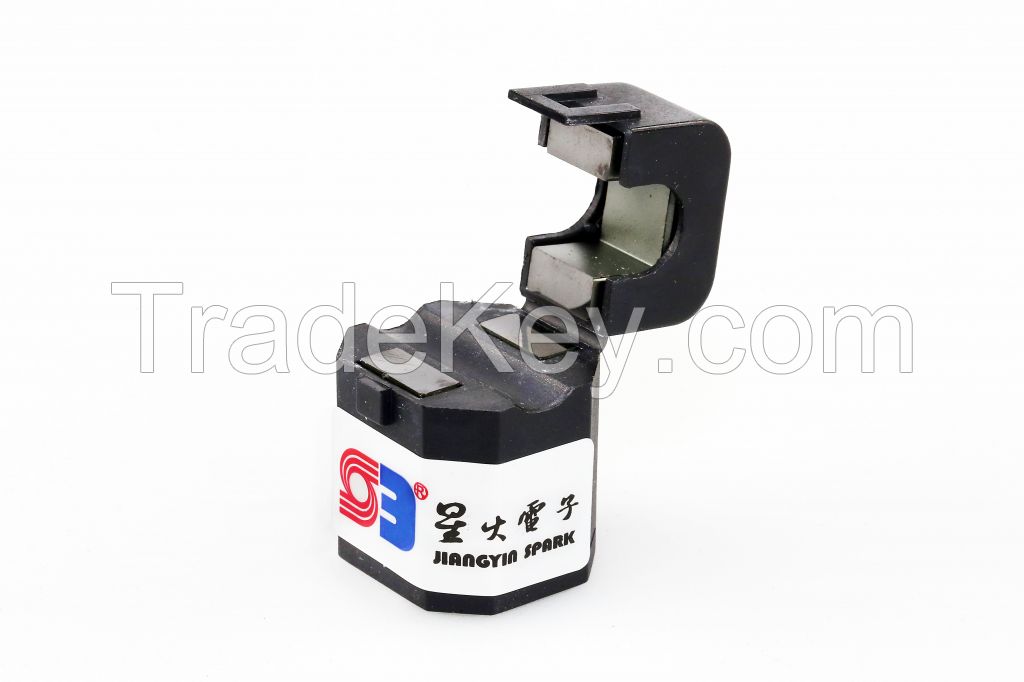

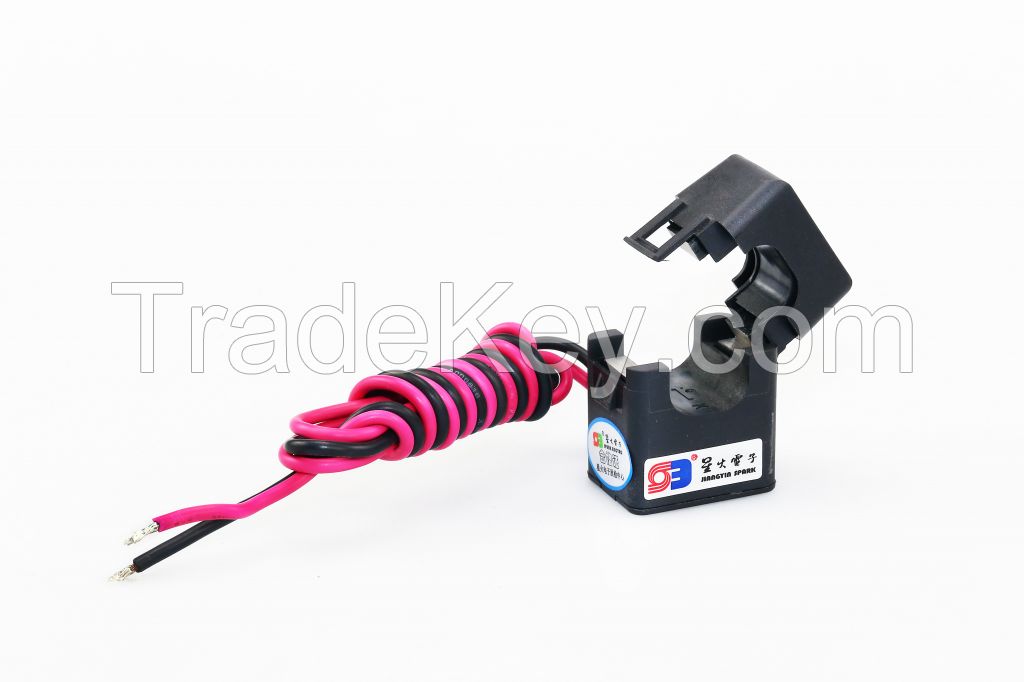

XH-SCT-T16 Split Core Current Transformer
Features:
Maximum continuous primary current 120A AC
Output: 0.333 Volt at rated current
Current Ratio: 3000: 1
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15 Cto 60 C.
Insulation Voltage: 600VAC
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC

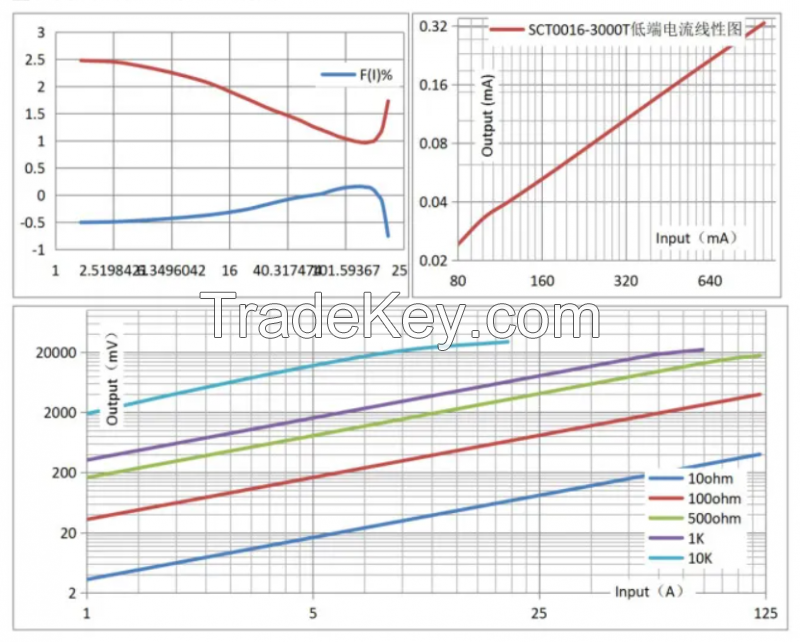

CURVE PERFORMANCE:

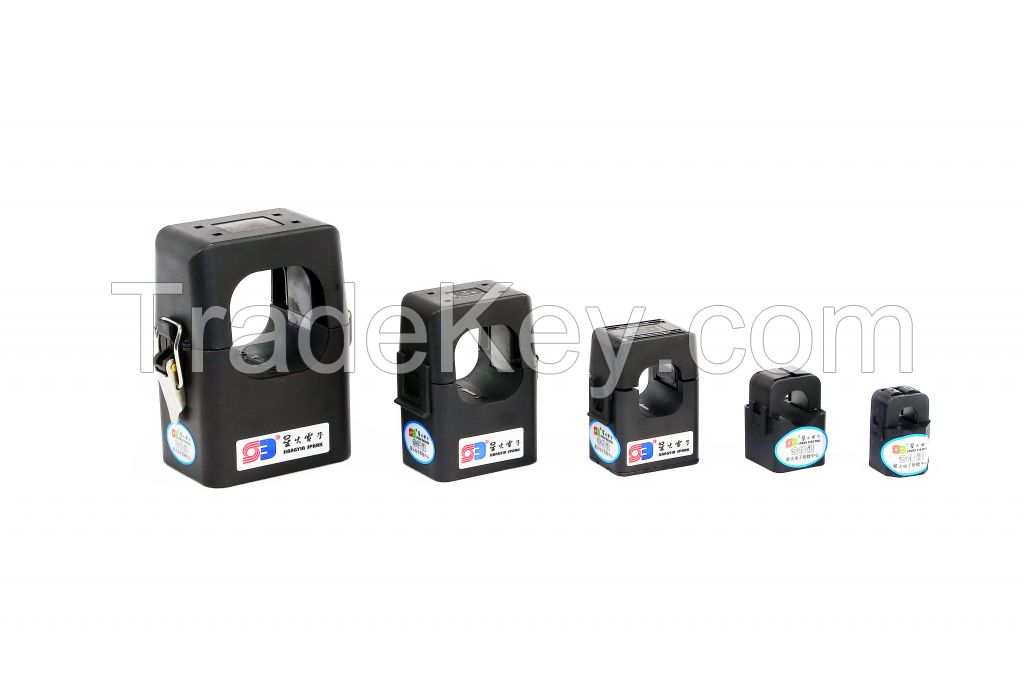

HOT SALE:

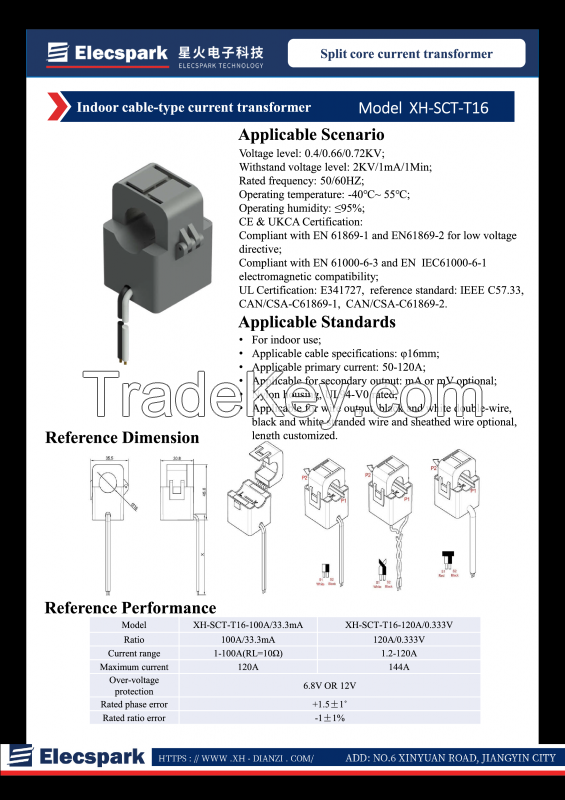

SPECIFICATIONS :
1,Rated Voltage:0.66 KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ or 60HZ
4,Operating Temperature:-15ºCto 60ºC
5,Flame resistance:UL94-V0
6,Certificates:CE,UL

FEATURES:
1,Small cost
2,Split core design ,Easier installation
3 Build diode ,no high voltage danager
4,Good linearity at very low current
