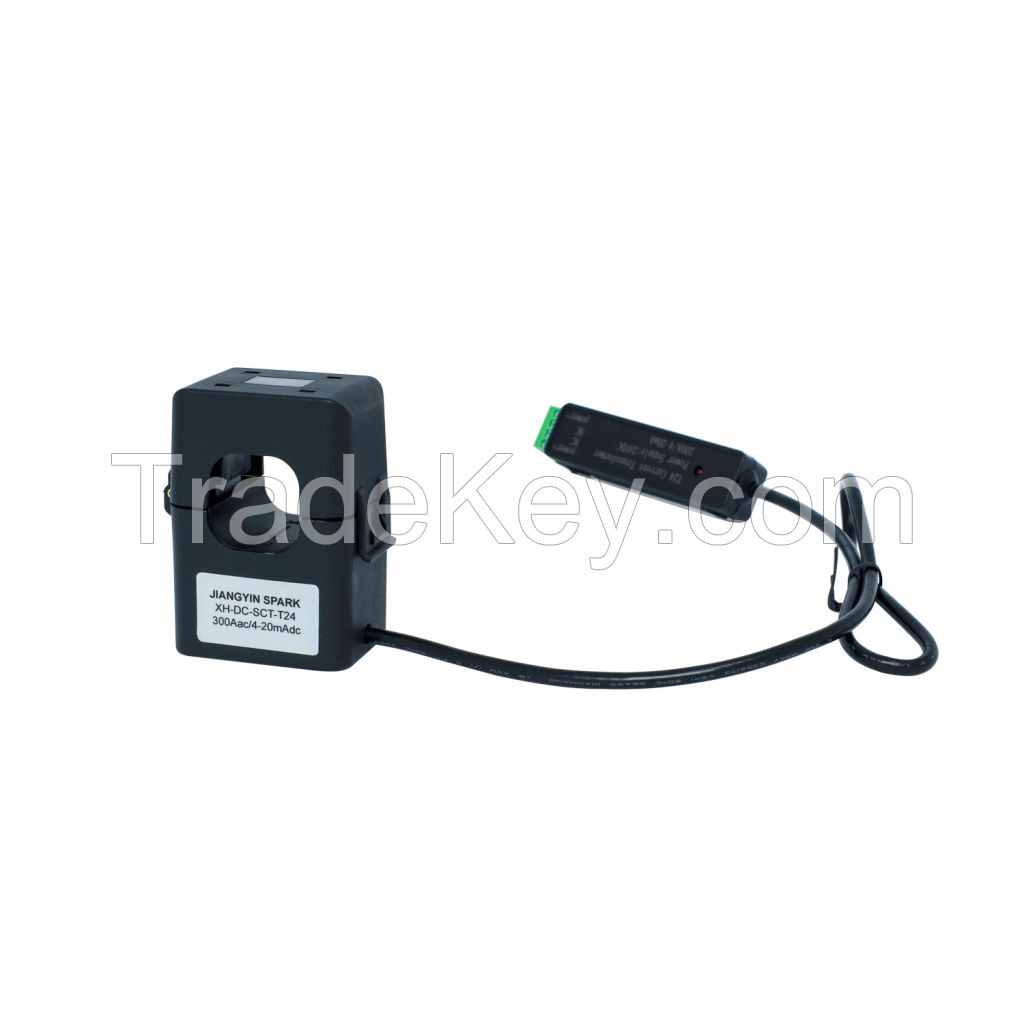

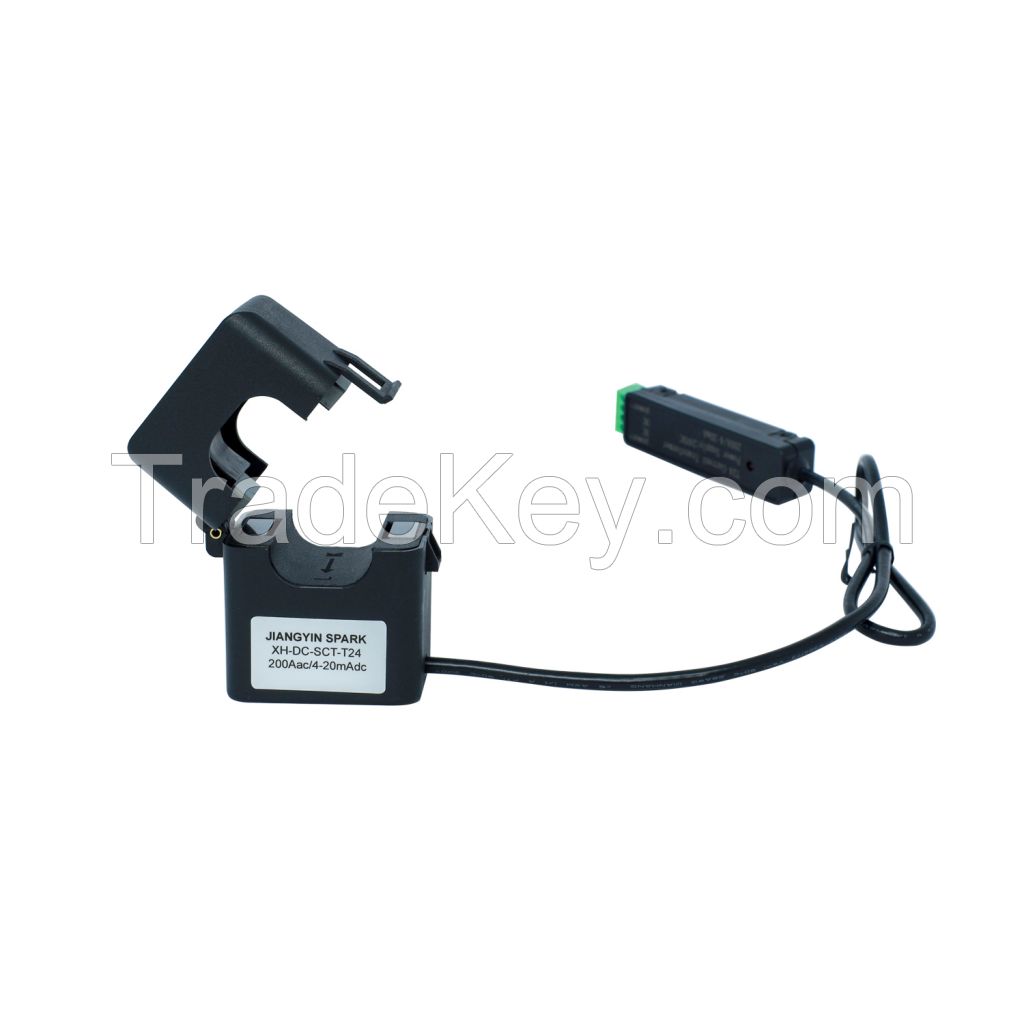

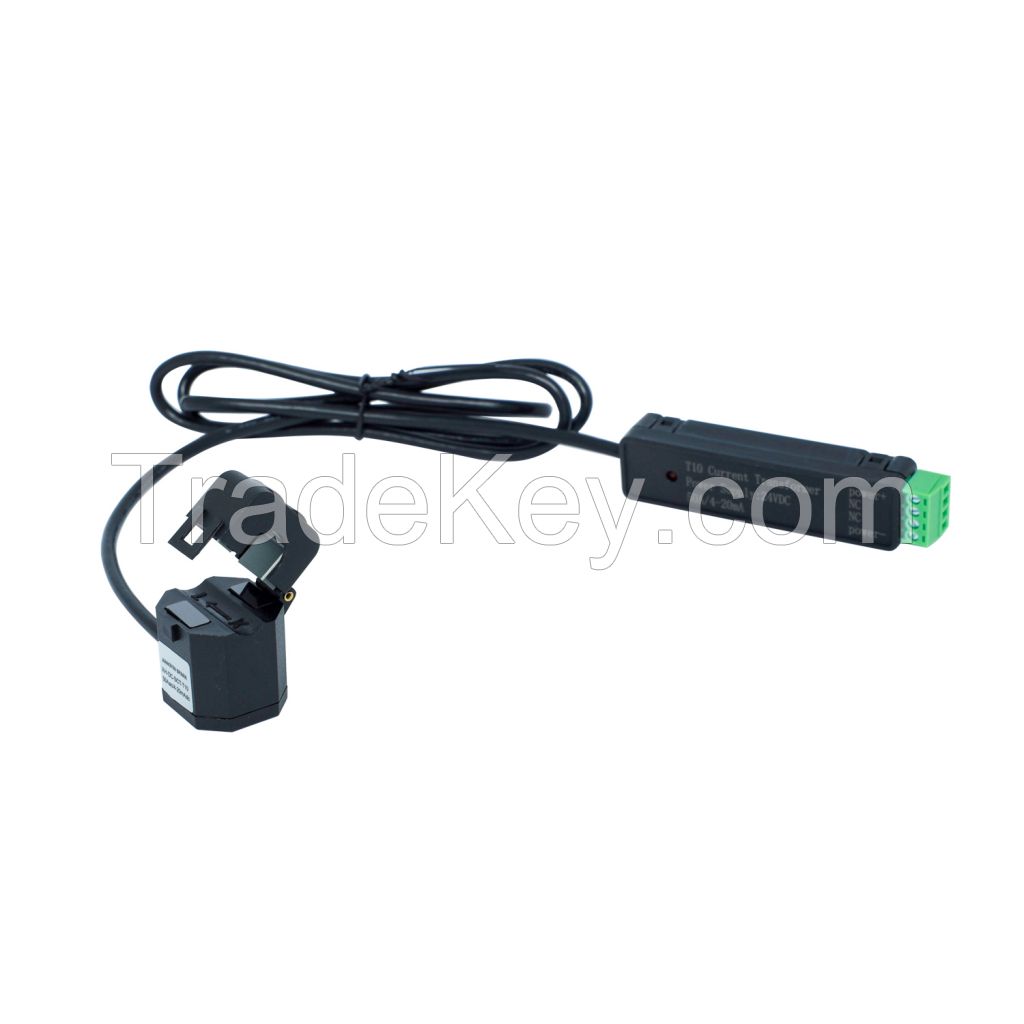

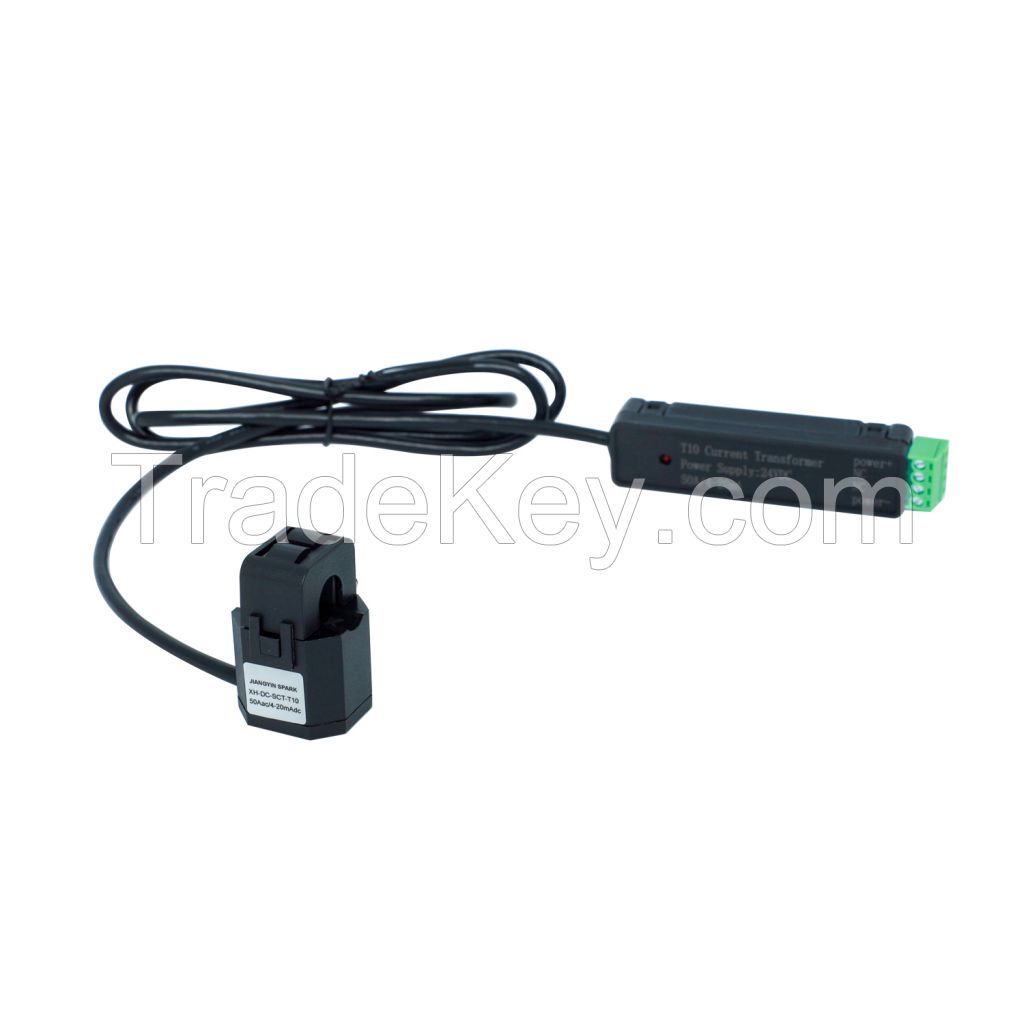

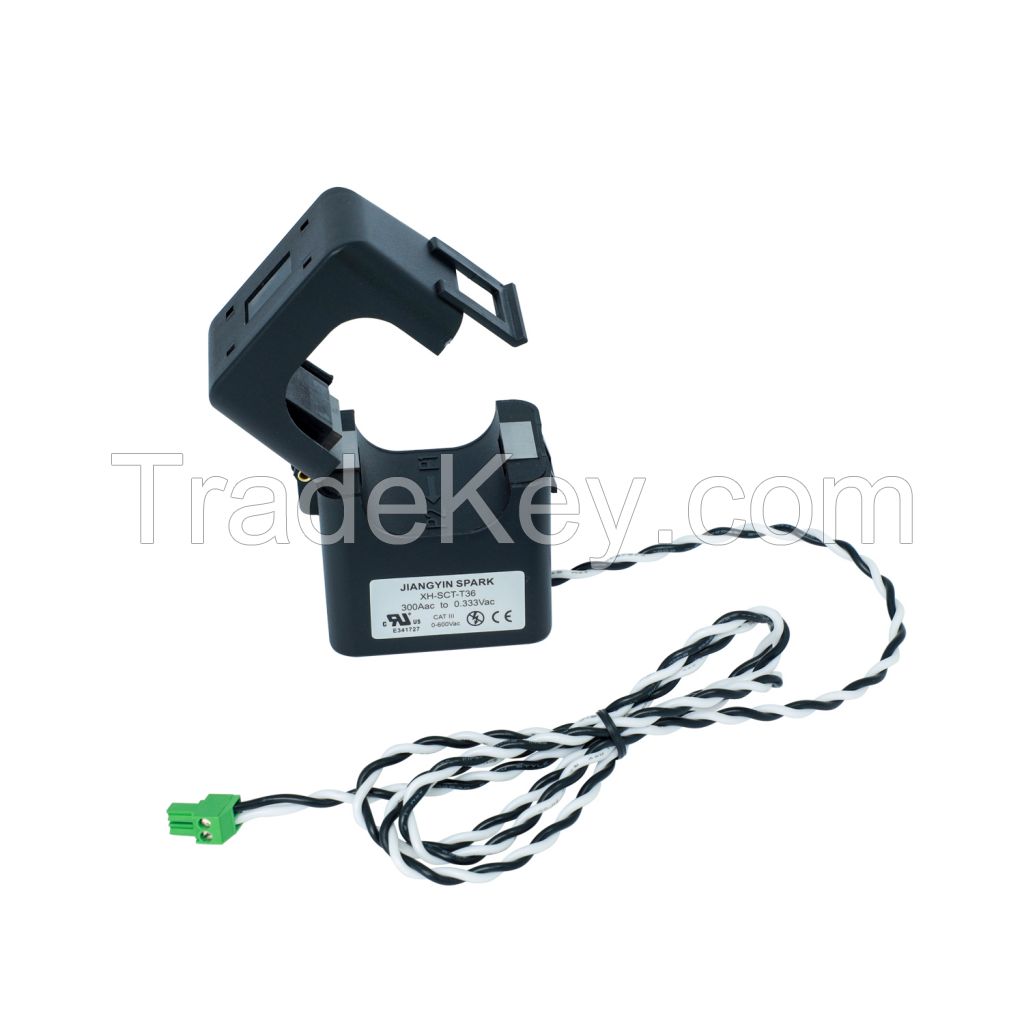

Split core DC
current sensor 4-20mA DC
secondary
Specifications
Input current: 50A
AC
Output Signal: 4-20mA
DC
Measurement Accuracy: +/-
2%
Linearity: +/-
2%
Temperature drift: <
5%
Auxiliary power supply:
DC15-24V
Maximum Output
Signal: 4-20mA
Operating Temperature: -30° C to +65°
C
Storage Temperature: -40° C to +85°
C
Operating Humidity: 10 to 95 %RH
non-condensing
Storage Humidity: 10 to 95 %RH
non-condensing
| Current range(AC) | DC-T10 | DC-T16 | DC-T24 | DC-T36 | DC-T50 | A | ||||||||||||||||||||||
| 5-80 | 10-120 | 10-300 | 10-500 | 10-1000 | ||||||||||||||||||||||||
| Measure range | 1% - 100% | % | ||||||||||||||||||||||||||
| Power frequency | 45-65 | Hz | ||||||||||||||||||||||||||
| Output | 0-5VDC | 0-10VDC | 4-20mADC | Ω | ||||||||||||||||||||||||
| Load | ≥100K | ≥100K | ≤500 | |||||||||||||||||||||||||
| Supply voltage | 12/24V | V | ||||||||||||||||||||||||||
| Power Consumption | < 40 | mA | ||||||||||||||||||||||||||
| Offset drift | mV/ºC | |||||||||||||||||||||||||||
| Accuracy | ≤1 | % | ||||||||||||||||||||||||||
| Linearity | ≤1 | %FS | ||||||||||||||||||||||||||
| Response time | ≤20 | ms | ||||||||||||||||||||||||||
| Galvanic isolation | AC,1min 10 | KV | ||||||||||||||||||||||||||
| Isolation resistance |
